PVC Wall Tie Sleeve – Cut to size services available.

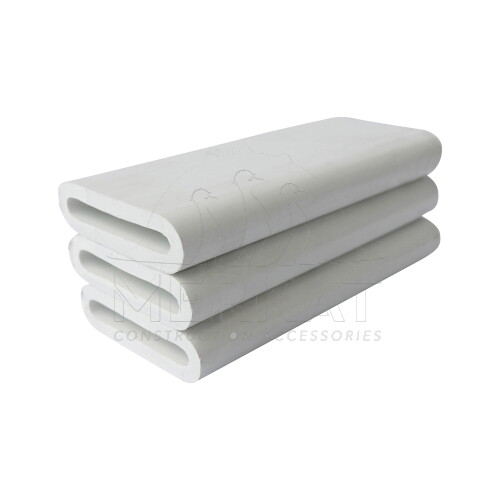

The PVC Flat Wall Tie Sleeve is a highly efficient plastic conduit designed to protect steel flat reusable wall ties during concrete pouring in aluminium formwork systems. By encasing the flat wall tie prior to casting, this sleeve prevents the concrete from bonding directly to the steel, allowing the wall ties to be smoothly extracted/removed and reused across multiple construction cycles.

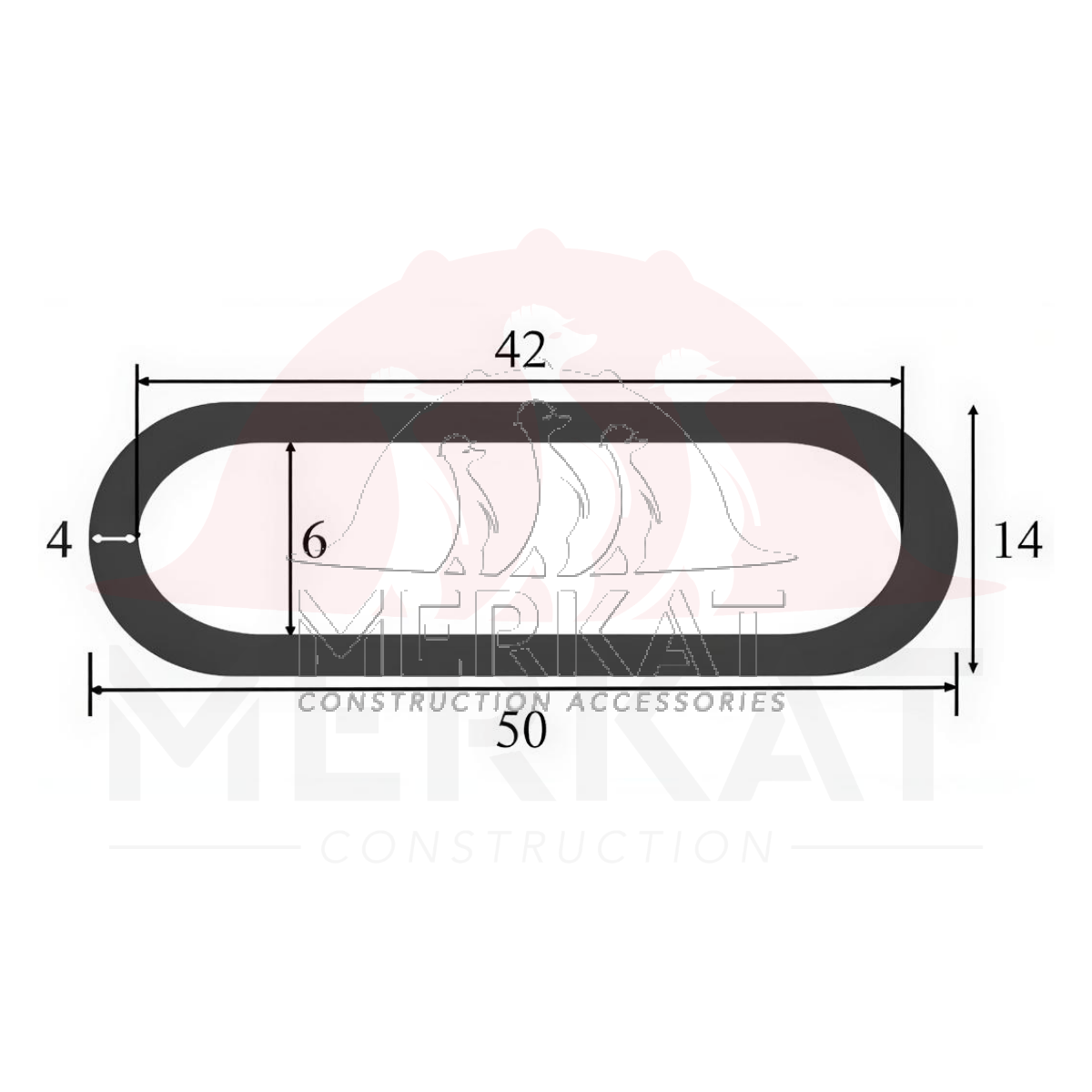

Manufactured from high-grade, rigid PVC material, these oval-profiled sleeves offer excellent resistance to deformation under the intense hydrostatic pressure of fresh concrete, drastically lowering material replacement costs for high-rise monolithic construction.

Key Features:
1. Enables Flat Tie Reusability: Prevents concrete slurry from bonding to the steel tie surface, facilitating clean, effortless extraction and maximizing your wall tie duty cycles.
2. High Crush & Impact Resistance: Engineered from tough, industrial-grade PVC that maintains its hollow, oval geometry under heavy concrete pouring and mechanical vibration.
3. Seamless Panel Fit: Specially contoured to sit flush against the internal faces of opposing aluminium formwork panels, keeping slurry out of the conduit.
4. Cost-Efficient Site Cycling: Drastically reduces total component consumption on-site by transitioning consumable one time use flat ties into highly reusable structural assets.
5. Fast, Tool-Free Installation: Standardized sizing allows the sleeves to be quickly slid over flat ties manually during the formwork assembly phase.

Applications:
1. Protective layer for reusable flat-tie systems in aluminium formwork monolithic high-rise and mass landed construction.
2. Ideal for standard dual-sided wall casting setups utilizing high-cycle aluminium formwork panels.
